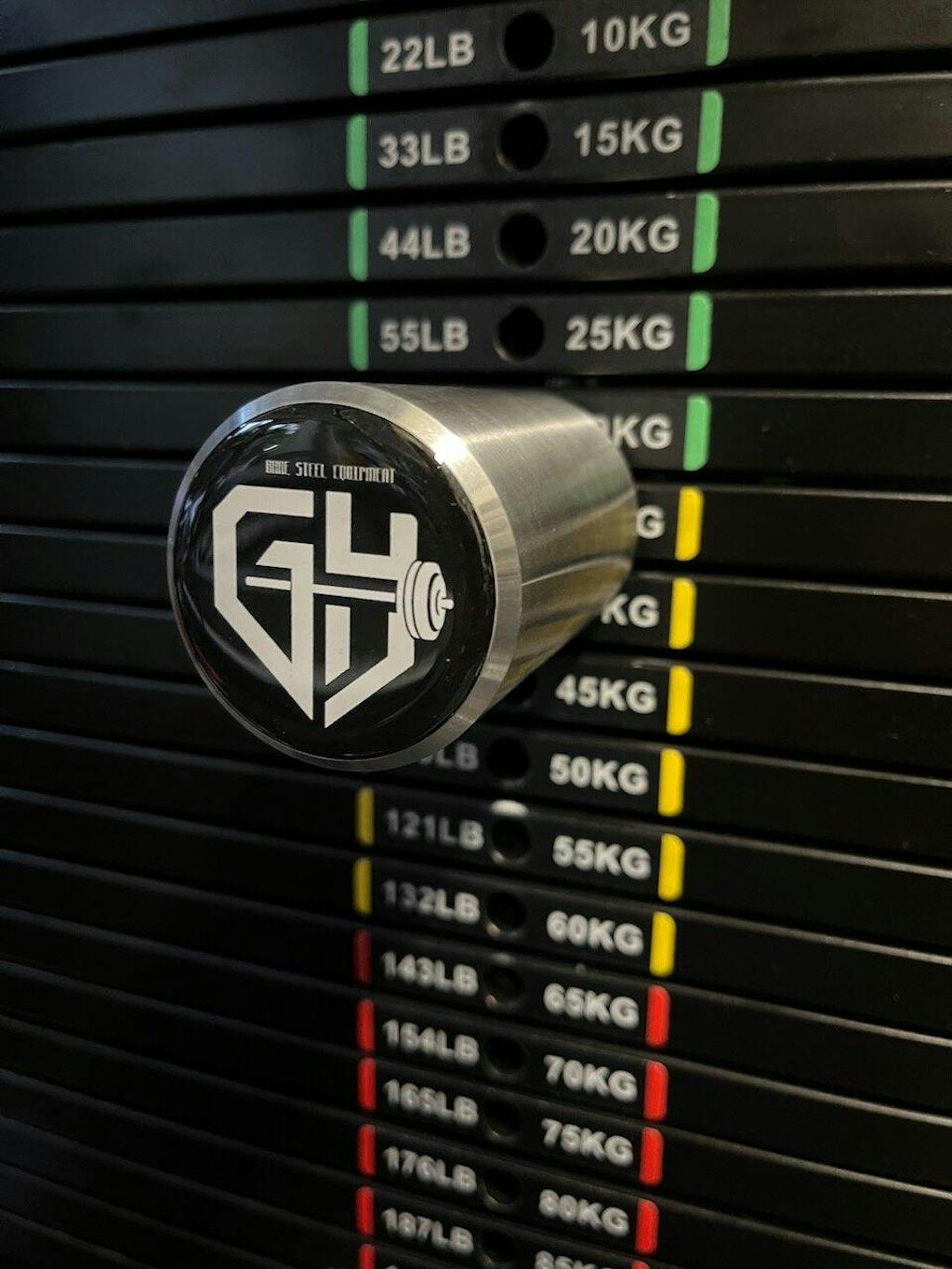

8mm Short Stack Weight Pin
Every machine is different, and every design is different. Some machines have a post or frame too close that the Stacked Weight Pin is too large to fit into. Enter the Short Stack Weight Pin. This is a miniature based on the classic patent pending design. This pin is designed to fit those smaller spaces either in between the machine and weight stack or post. It's the perfect fit for those machines that you can add weight, but the original Stacked Weight Pin is too large.
The Stacked Weight Pin is a patent pending pin that allows you to add additional Olympic weight plates to any selectorized machine. The 8mm pin is a full 9", 7" or 6.65" steel pin surrounded by another 2" of steel for a super strong, sturdy hold for additional plates. Magnets at the base of the pin provide 21 pounds of pull to keep the pin attached to the weight stack. The stacked weight pin is unique in that it is a 2-in-1 pin. With a weight of 2.5lbs, it automatically acts as an adder weight when you are in between the traditional 10lb stacks. Gone are the days of lost adder weights at the gym sticking plates to the side in awkward ways. You are sure to increase your own training and continue to challenge yourself with the Stacked Weight Pin.
Specs and Features
Total Length: 9", 7" or 6.65″
Barbell Sleeve: 3″ long with 2″ diameter, fitting Olympic weights
Six-Shooter magnets with 21 lbs of pull
Rod Length & Size: 4", 3.65″, 5", or 6" long 8mm pin will fit most commercial sized cable selectorized machines*
The 4" rod length is the most common and best for machines with open pin holes through the entire plate, or with machine that has a 4" selector pin. Measure your selector pin or plate width for the most accurate length needed.
The 3.65" rod is best for machines that have closed pin holes behind the stack. This means the backside of the plate stack has no opening. Measure your selector pin for the most accurate length needed.
The 6" rod is best for weight stacks that have a wider plate to them. The best fitting for this rod is the Inspire functional trainer series. Measure your selector pin for the most accurate length needed.
Max Weight: 100 lbs
Made in USA
100% USA Steel
Bare Steel pins ship in 3-5 business days
Cerakote pins ship in 2-4 weeks
Pins with TiN rods ship in 3-5 weeks
Custom pins ship in 4-6 weeks
Custom Logo Pins ship in 2-4 weeks
Laser Engraving ships in 3-5 weeks
Worldwide shipping available*
*international orders may be subject to import fees
We are proud to offer Cerakote finishes to our lineup of Stacked Weight Pins. Painted locally, the same attention to detail applied to your pin will also be applied to your paint. We can also offer a variety of custom options!
Cerakote is a ceramic based finish that can be applied to metals, plastics, polymers and wood. The unique formulation used for Cerakote ceramic coating enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength, and hardness. Each of these properties is rigorously tested to guarantee that Cerakote products remain at the forefront of the ceramic coatings market. Cerakote ceramic coatings utilize state-of-the-art technology to out-perform any competitive coating in both laboratory settings and real world applications.
Titanium Nitride (TiN) Coating
We also offer Titanium Nitride (TiN) coating services on all Stacked Weight Pin rods. Why Titanium Nitride? Titanium Nitride is unique in terms of finishes as it not only gives a custom look to your pin, but it also adds durability and reduces the friction on the coated part. Another plus with Titanium Nitride is that the average coating adds only 3 micrometers of thickness, so it will enhance the function and look of your pin and will prevent rust and additional wear on your pin rod. To get the maximum protection for the most used portion of the pin, Titanium Nitride will prove a worthy investment!
Custom Logo Decal
We are now offering custom logo decals for your Stacked Weight Pin. The upgrade comes with 10 decals. Here’s how the process works:
Purchase your pin and add on the custom decal
Send us an email to firstname.lastname@example.org with your logo. Preferred formats are .png, .ai, .pdf, .svg or .eps
We will send back a draft for you to approve
NOTE: all artwork MUST contain the Bare Steel Equipment text and/or skull design
Approved logos take 2-3 weeks to arrive
We are now offering laser engraving on our pins. This eliminates the need for a front decal and will feature the Bare Steel Equipment Skull logo and the text along either the side of the pin or along the rod. Because of the requirement for hanging during the drying phase for Cerakote, a small hole will be drilled at the end of the pin rod to accommodate this. This will not affect the use of the pin.
Please allow 3-5 weeks for completion.
UPS Ground Shipping Time
The Stacked Weight Pin is intended to be used as anadder weight attachment only.Do not use the pin as a selector pin with added weight. It could cause bending of the pin and result in serious injury.
It is important to check and verify the weight capabilities of your cable machines prior to use. Failure to do so may result in serious injury.
*NOTE: It is important to measure your selector pin or stack hole for the most accurate fit. A digital caliper will provide the most precise fit and are inexpensive and very convenient to have. You can find them onAmazon. If unsure of fit, measure first.
